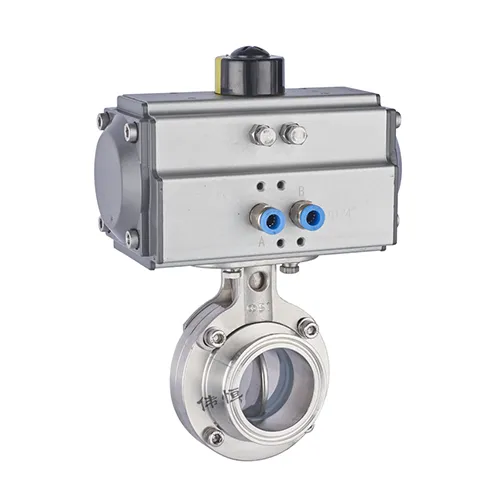

Pneumatic Quick-Release Butterfly Valve

Introduction

The Pneumatic Quick-Release Butterfly Valve is an advanced valve solution designed to provide fast and efficient flow control in industrial piping systems. Featuring a pneumatic actuator and a quick-release mechanism, this valve ensures rapid operation, easy maintenance, and enhanced reliability in demanding applications. Its robust construction and efficient design make it ideal for industries such as chemical processing, water treatment, HVAC, and food & beverage. The quick-release feature significantly reduces downtime, offering a highly efficient solution for systems that require frequent maintenance or adjustment.

Key Features and Benefits

Before delving into the detailed specifications and applications, let's first highlight the key features and benefits of the Pneumatic Quick-Release Butterfly Valve:

• Pneumatic Actuation: Ensures fast, reliable control for rapid valve opening and closing, reducing operational time.

• Quick-Release Mechanism: Allows for easy valve disassembly and maintenance, minimizing downtime and operational disruptions.

• Corrosion-Resistant: Constructed with high-quality materials like stainless steel, the valve is resistant to corrosion and wear, ensuring long-term durability in harsh environments.

• Energy Efficiency: Pneumatic operation provides energy-efficient performance, reducing overall operational costs.

• Compact Design: The valve’s compact form makes it ideal for space-constrained installations.

• Minimal Maintenance: Due to the simple and robust design, the valve requires minimal maintenance, leading to cost savings over time.

Environmental Standards and Compliance

The Pneumatic Quick-Release Butterfly Valve is built with environmental sustainability and industry regulations in mind. It complies with key environmental standards and safety requirements to ensure that it meets the demands of modern industrial applications while also protecting the environment.

1. RoHS Compliant

The valve is fully RoHS compliant, ensuring that no hazardous substances like lead, mercury, or cadmium are used in its construction. This makes it environmentally friendly and suitable for applications where safety and sustainability are a priority.

2. ISO 14001 Certified

Manufactured in facilities certified with ISO 14001, the valve meets stringent environmental management standards. The certification ensures that the valve production process minimizes its carbon footprint and environmental impact.

3. Energy Efficiency

The pneumatic actuator used in the valve is designed to optimize energy consumption, providing low-power operation without compromising on performance. This makes it suitable for energy-efficient systems and applications that require cost-effective solutions.

4. Durability and Sustainability

Constructed with stainless steel or alloy materials, the valve offers exceptional resistance to corrosion, making it highly durable and long-lasting in even the most challenging industrial environments. This minimizes the need for frequent replacements, promoting sustainability.

Operation Instructions

Proper operation of the Pneumatic Quick-Release Butterfly Valve ensures optimal performance and longevity. Below are the key operational instructions:

1. Installation

• Step 1: Ensure that the valve is the correct size and type for the system by referencing the technical specifications (see below).

• Step 2: Attach the valve to the pipeline, ensuring that the flanged ends (or wafer-style) are properly aligned and tightened.

• Step 3: Connect the pneumatic actuator to the air supply and confirm that the air pressure is within the recommended range (typically 4-8 bar).

• Step 4: Ensure that the quick-release mechanism is installed correctly, with sufficient space for easy disassembly and maintenance.

2. Operating the Valve

• Step 1: To open the valve, activate the pneumatic actuator, which will rotate the butterfly plate and allow flow through the pipeline.

• Step 2: To close the valve, reverse the pneumatic actuator’s signal. The butterfly plate will rotate to block the flow, sealing the valve shut.

• Step 3: The quick-release mechanism allows the valve to be disassembled quickly for maintenance or inspection, without the need for additional tools or complex procedures.

3. Maintenance and Troubleshooting

• Refer to the Maintenance Procedures section for regular checks and cleaning schedules.

• If the valve fails to open or close properly, inspect the pneumatic actuator and check for blockages or insufficient air pressure.

• If there is leakage around the valve seals, check the seals for wear and replace them if necessary.

Parts List

Below is a detailed parts list for the Pneumatic Quick-Release Butterfly Valve. This list includes the main components that make up the valve and their respective functions:

Application Cases

The Pneumatic Quick-Release Butterfly Valve is highly versatile and can be used in a variety of applications. Below are several examples of its use in different industries:

1. Chemical Processing

• Challenge: Chemical processing plants often require valves that can handle corrosive and high-temperature fluids while maintaining tight flow control.

• Solution: The Pneumatic Quick-Release Butterfly Valve offers precise control and corrosion resistance, making it ideal for managing chemical fluids in pipelines.

2. Water Treatment

• Challenge: Water treatment systems require valves that provide accurate flow regulation and are resistant to environmental corrosion.

• Solution: The valve’s pneumatic actuator ensures quick, reliable operation, while its stainless steel body resists the harsh conditions of water treatment processes.

3. Food and Beverage

• Challenge: In the food and beverage industry, valves need to meet strict sanitary standards while offering reliable flow control.

• Solution: The Pneumatic Quick-Release Butterfly Valve provides easy disassembly for cleaning and maintenance, making it an excellent choice for food processing plants.

4. HVAC Systems

• Challenge: HVAC systems often require valves that can operate under varying temperatures and pressures while providing efficient flow control.

• Solution: The valve’s energy-efficient pneumatic actuator and quick-release feature make it ideal for temperature-sensitive systems such as HVAC.

Conclusion

The Pneumatic Quick-Release Butterfly Valve is a high-performance solution for industrial flow control systems requiring quick maintenance and reliable operation. With its pneumatic actuation, quick-release mechanism, and corrosion-resistant materials, this valve is ideal for use in industries such as chemical processing, water treatment, food and beverage, and HVAC systems. By adhering to environmental standards and providing easy maintenance, it ensures long-term reliability and cost-effective performance.

For more information on the Pneumatic Quick-Release Butterfly Valve, or to place an order, please contact our sales team.
