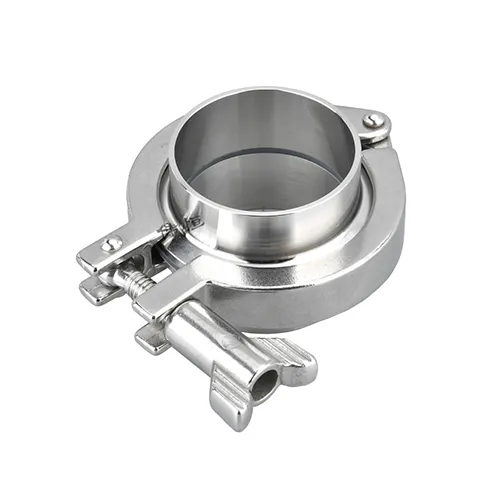

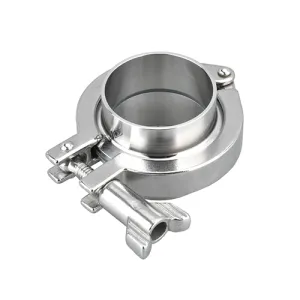

Stainless Steel Joint Clamp Set: Maintenance and Installation Guide

Introduction

The Stainless Steel Joint Clamp Set is a critical component used in various industrial and commercial applications for securing pipes and tubing in fluid control systems. Known for their corrosion resistance and durability, these clamps are perfect for industries such as chemical processing, food and beverage, pharmaceuticals, and water treatment. This guide will provide an in-depth look at the maintenance procedures, installation conditions, and maintenance cycles for the Stainless Steel Joint Clamp Set, ensuring long-term performance and reliability.

By following proper installation and maintenance guidelines, users can extend the lifespan of the clamp set, improve system efficiency, and minimize the need for costly repairs or replacements.

Key Features and Benefits of Stainless Steel Joint Clamp Sets

Before diving into the maintenance and installation aspects, let’s first highlight some of the key features and benefits of the Stainless Steel Joint Clamp Set:

Installation Conditions for Stainless Steel Joint Clamp Sets

Proper installation is key to ensuring the Stainless Steel Joint Clamp Set operates efficiently. Follow these installation conditions to guarantee secure and reliable connections:

1. Cleanliness of Components

Before installing the Stainless Steel Joint Clamp Set, ensure that all pipes, tubing, and clamps are thoroughly cleaned. Any dirt, grease, or debris on the pipe or tubing surface can interfere with the clamp’s ability to create a secure seal, leading to leaks.

Recommended Cleaning Procedure:

• Use a clean, lint-free cloth to wipe down all surfaces.

• For pipes with stubborn dirt, use a mild solvent or detergent and rinse with clean water.

• Allow the components to dry completely before installation.

2. Proper Alignment

Align the clamps with the pipe or tubing to ensure even pressure distribution when tightened. Misalignment can cause uneven sealing, which may result in leaks or stress on the material.

3. Correct Tightening Torque

Tightening the clamps too much can damage the pipe or tubing, while insufficient tightening can result in a poor seal. Always follow the manufacturer’s recommended torque specifications for optimal results.

Torque Specifications Table:

4. Use of Correct Tools

Always use appropriate wrenches or torque tools when tightening the clamps. Adjustable wrenches or torque wrenches are typically recommended for achieving the right torque without over-tightening.

5. Check for Proper Sealing

After installation, visually inspect the clamp for signs of even compression on the pipe and verify that there are no gaps between the clamp and the tubing. Perform a pressure test if necessary to confirm the effectiveness of the seal.

Maintenance Guidelines for Stainless Steel Joint Clamp Sets

Regular maintenance of the Stainless Steel Joint Clamp Set is essential to ensure long-term performance and prevent issues such as leaks or system failures. Below are the recommended maintenance procedures:

1. Inspection Frequency

For optimal performance, the Stainless Steel Joint Clamp Set should be inspected regularly. The frequency of inspection depends on the system’s usage and operating conditions. Here are general guidelines:

Inspection Schedule:

During inspections, look for any signs of wear, corrosion, or damage to the clamp body, seal, or bolts.

2. Lubrication of Moving Parts

While the Stainless Steel Joint Clamp Set itself is durable, the bolts or fasteners may require periodic lubrication to ensure smooth operation. Use lubricants that are compatible with the materials being clamped and the environment (e.g., food-safe or chemically-resistant lubricants).

Lubrication Procedure:

• Apply a small amount of lubricant to the bolt threads and any movable parts.

• Avoid over-lubricating, as excess lubricant can attract dirt or debris.

3. Cleaning the Clamp Set

Regularly clean the clamp set to remove any buildup of dust, dirt, or chemicals that may compromise its performance. Use a mild detergent and water, and ensure that all components are thoroughly dry before reassembling.

4. Check for Loose Bolts or Nuts

Over time, bolts and nuts may loosen due to vibrations or changes in system pressure. Regularly tighten any loose fasteners, ensuring they are within the recommended torque range.

Maintenance Cycle and Replacement of Parts

1. Replacement Cycle for Seals and Gaskets

Seals and gaskets play a critical role in ensuring that the clamp provides a tight and secure seal. Inspect the seals regularly for signs of wear, cracking, or damage. Generally, seals should be replaced every 1 to 2 years depending on the usage and operating environment.

Seal Replacement Schedule:

• Heavy Duty Applications: Every 12 months

• Standard Industrial Use: Every 18 months

• Corrosive or Harsh Chemical Environments: Every 6 months

2. Part Replacement Cycle

If any components of the Stainless Steel Joint Clamp Set (such as bolts, nuts, or seals) show signs of damage or wear during inspection, they should be replaced immediately to avoid system failure or leakage. We recommend keeping spare parts on hand to minimize downtime.

Safety Precautions

To ensure safe operation during installation and maintenance of the Stainless Steel Joint Clamp Set, follow these safety guidelines:

1. Personal Protective Equipment (PPE)

Always wear appropriate PPE, including gloves, goggles, and protective clothing, to prevent injury from sharp edges, hot surfaces, or chemicals.

2. Lockout/Tagout (LOTO) Procedures

Before performing maintenance or repair work, ensure the system is properly locked out and tagged out to prevent accidental activation of pumps or pressure systems.

3. Pressure Relief

Before installing or removing clamps, ensure that all pressure is safely relieved from the piping system to prevent injuries or accidents.

Conclusion

The Stainless Steel Joint Clamp Set is an essential component in fluid control systems, providing reliable connections for pipes and tubing across a wide range of industries. By following proper installation procedures, adhering to the recommended maintenance cycle, and implementing safety protocols, users can maximize the lifespan and efficiency of their clamp sets.

Regular inspections, cleaning, and part replacements are key to ensuring that the clamp set continues to perform reliably, preventing leaks and minimizing downtime in critical systems.

For more information or to request a quote for the Stainless Steel Joint Clamp Set, feel free to contact us today.
