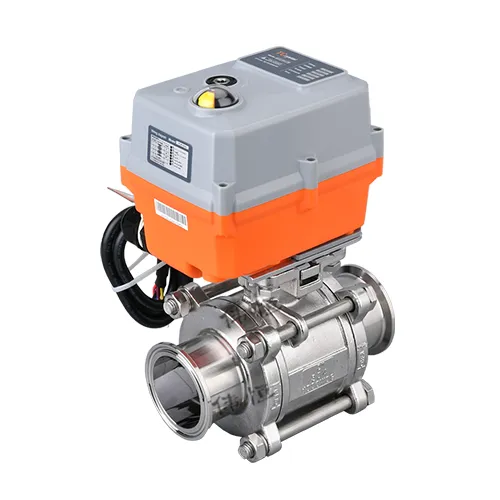

Sanitary Grade Electrically Adjustable Three-Piece Quick-Opening Ball Valve

Introduction

The sanitary grade electrically adjustable three-piece quick-opening ball valve is a state-of-the-art valve designed for applications demanding high hygiene standards, precise flow control, and automated operation. Widely used in the food, beverage, pharmaceutical, and dairy industries, this valve combines sanitary design, corrosion resistance, and efficient automation to ensure smooth, reliable, and safe operation in modern processing systems.

With the integration of electric actuators, the valve allows remote and precise control, significantly reducing manual intervention while improving operational efficiency. Its three-piece structure facilitates easy maintenance and cleaning, making it ideal for pipelines where hygiene and process reliability are paramount.

Key Technical Advantages

The sanitary grade electrically adjustable three-piece quick-opening ball valve offers a range of technical advantages that distinguish it from conventional valves:

1. Hygienic Design

• Sanitary stainless steel construction (SS304/SS316L) prevents corrosion and bacterial contamination.

• Smooth interior surfaces minimize dead zones where residue could accumulate.

• Compliance with FDA and 3A sanitary standards, making it suitable for food, beverage, and pharmaceutical pipelines.

2. Automated Control

• Electric actuator integration enables remote operation for precise flow control.

• Adjustable open and close positions allow for modulated control, reducing process errors.

• Supports integration with PLC or SCADA systems, enhancing process automation.

3. Quick Maintenance

• Three-piece design allows removal of the valve body without disconnecting the pipeline.

• Reduced downtime for cleaning, maintenance, or replacement of internal components.

• Compatible with CIP (Clean-in-Place) and SIP (Sterilize-in-Place) systems.

4. Durability and Reliability

• High-strength stainless steel materials ensure long-term corrosion resistance.

• PTFE or FDA-approved elastomer seals guarantee leak-proof performance.

• Smooth ball and stem operation reduces wear and extends service life.

Product Performance

The performance of the valve can be summarized in the following table:

Performance Highlights

• Quick response: The electric actuator allows rapid valve opening and closing, minimizing process delays.

• High flow capacity: The full-bore ball design reduces pressure drop, ensuring optimal fluid flow.

• Sanitary compliance: All wetted surfaces are polished to Ra ≤ 0.8 μm, preventing contamination.

Installation Conditions

Proper installation ensures optimal performance and long-term reliability of the valve. The following points should be considered:

1. Environmental Conditions

• Suitable for indoor and controlled environments.

• Ensure the actuator is protected from moisture, dust, and direct sunlight.

• Ambient temperature range for the actuator: -10°C to 50°C.

2. Pipeline Requirements

• Ensure clean and debris-free piping before installation.

• Proper alignment is required to prevent stress on the valve body.

• Maintain adequate support for pipelines to prevent deformation.

3. Electrical Requirements

• Actuator power supply: AC 24V, 110V, 220V or DC 24V depending on the model.

• Proper grounding is required to prevent electrical hazards.

• Integrate limit switches and position feedback sensors for safe operation.

4. Maintenance Access

• Ensure sufficient space around the valve for actuator maintenance and three-piece disassembly.

• The valve should be installed upright or horizontally, depending on pipeline configuration.

Material Specifications

Sanitary-grade valves use premium materials to meet industry standards for hygiene, durability, and chemical resistance.

Material Advantages

• Stainless steel body: Prevents rust and chemical attack.

• PTFE seals: Resist a wide range of chemicals and maintain hygienic operation.

• Polished ball and body surfaces: Reduce bacterial adhesion and simplify cleaning.

Applications

The sanitary grade electrically adjustable three-piece quick-opening ball valve is ideal for industries where hygiene, precise control, and automation are critical.

1. Food and Beverage Industry

• Dairy processing: Milk, cream, and yogurt pipelines.

• Beverage production: Juice, soft drinks, and alcoholic beverages.

• Food processing: Sauces, oils, and liquid ingredients.

2. Pharmaceutical Industry

• Chemical and liquid drug production requiring sterile and contamination-free flow.

• Integration with CIP/SIP systems for continuous hygiene compliance.

3. Biotechnology and Life Sciences

• Bioprocessing pipelines where precise flow control is necessary.

• Sterile water and nutrient delivery systems.

4. Chemical Industry

• Handling corrosive fluids safely in pipelines.

• Precise control of acid, alkali, or specialty chemicals.

Maintenance and Cleaning

1. Regular Maintenance

• Inspect seals and O-rings periodically for wear or damage.

• Check actuator functionality and limit switches for accurate operation.

• Ensure tri-clamp connections remain tight and leak-free.

2. Cleaning Procedures

• Compatible with CIP and SIP cleaning processes.

• Disassemble the three-piece valve body for deep cleaning if necessary.

• Avoid abrasive materials that may scratch polished surfaces.

3. Troubleshooting

Conclusion

The sanitary grade electrically adjustable three-piece quick-opening ball valve is a high-performance, hygienic, and automated solution for modern industrial pipelines. Its combination of sanitary design, electric actuation, and three-piece construction provides precision, efficiency, and easy maintenance. Suitable for a wide range of industries, including food, beverage, pharmaceutical, and chemical processing, this valve ensures reliable operation, regulatory compliance, and long-term durability.

By integrating this valve into your system, facilities can achieve enhanced process automation, reduced manual intervention, and improved hygiene standards, meeting both operational and regulatory requirements.
