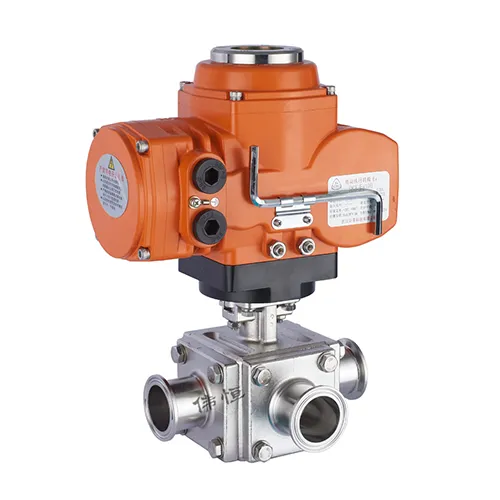

Electric Square Three-Way Ball Valve

Introduction

The Electric Square Three-Way Ball Valve is a high-performance industrial valve designed for automated flow control in complex pipeline systems. Its square body design and three-way configuration allow for diversion, mixing, or shut-off of fluids with high precision.

Equipped with electric actuation, this valve enables remote operation, precise flow regulation, and seamless integration into automated industrial systems. Constructed from premium stainless steel and high-quality sealing materials, it ensures long-term durability, corrosion resistance, and leak-proof performance, making it ideal for applications in chemical processing, water treatment, pharmaceuticals, food & beverage, and industrial manufacturing.

Core Advantages

The Electric Square Three-Way Ball Valve offers several key benefits over traditional valves:

1. Three-Way Flow Configuration

• Allows diversion, mixing, or isolation of fluid between three pipeline ports.

• Provides flexibility for complex piping systems, reducing the need for multiple valves.

• Supports efficient system design and space-saving installation.

2. Square Body Design

• Ensures uniform torque distribution and easier mounting and maintenance.

• Compatible with compact pipeline layouts and industrial equipment.

• Offers improved mechanical strength and stability under high-pressure conditions.

3. Electric Actuation

• Enables automated opening/closing and flow control for remote or integrated operations.

• Supports PLC and SCADA system integration for industrial automation.

• Provides precise positioning and repeatable operation, reducing human error.

4. Durable Materials and Seals

• Valve body constructed from SS304 or SS316L stainless steel for excellent corrosion resistance.

• Ball polished to ensure minimal flow resistance and smooth operation.

• Seals made from PTFE or FDA-approved elastomers, providing leak-proof performance and chemical compatibility.

5. Ease of Maintenance

• Modular design allows quick disassembly for inspection or seal replacement.

• Reduces downtime and maintenance costs in industrial operations.

• Quick-card or clamp designs enable fast cleaning and reassembly.

Product Parameters

The following table summarizes the key specifications of the valve:

Material Specifications

1. Valve Body

• SS304 Stainless Steel: Suitable for general industrial applications; offers excellent corrosion resistance and durability.

• SS316L Stainless Steel: Ideal for highly corrosive environments, chemical processing, and hygienic applications.

• Surface Finish: Polished or passivated to enhance corrosion resistance and hygiene.

2. Ball

• Material: SS316L stainless steel ensures long-term wear resistance and smooth operation.

• Polished to Ra ≤ 0.4 μm for minimal pressure drop and reduced fluid contamination.

3. Seals and Seats

• PTFE (Teflon): Chemically resistant, non-stick, and leak-proof.

• FDA-Approved Elastomers: Suitable for food, beverage, and pharmaceutical applications.

• Seals are replaceable to extend valve service life.

4. Actuator

• Electric AC or DC actuator provides automated control.

• IP65 or higher protection rating for dust and water ingress.

• Compatible with manual override for emergency operation.

Core Advantages in Industrial Applications

1. Chemical Industry

• Handles corrosive acids, alkalis, and solvents with leak-proof reliability.

• Reduces pipeline complexity by combining diverting and mixing operations in one valve.

2. Water Treatment

• Controls filtration, dosing, and distribution systems efficiently.

• Automated actuation enables precise water flow management.

3. Food & Beverage

• Suitable for hygienic pipelines due to polished stainless steel and FDA-compliant seals.

• Quick-card design supports frequent cleaning and sterilization.

4. Pharmaceutical & Biotechnology

• Ideal for sterile fluid handling and bioprocess pipelines.

• Reduces contamination risk through high-quality seals and automated operation.

5. Industrial Manufacturing

• Controls coolants, lubricants, and other process fluids in automated production lines.

• Enhances efficiency, safety, and precision in complex piping systems.

Testing and Quality Standards

To ensure reliability and compliance, the valve undergoes rigorous testing and adheres to international standards:

Quality Assurance Measures

• Each valve is inspected for surface finish, machining accuracy, and leak-proof performance.

• Actuators are tested for electrical performance, torque output, and cycle endurance.

• Optional 3rd-party inspection and certification are available for critical applications.

Installation Guidelines

1. Pre-Installation

• Confirm the valve size, pressure rating, and connection type match the pipeline system.

• Inspect the valve for damage, debris, or missing components.

• Ensure the actuator is wired correctly and compatible with the control system.

2. Installation Procedure

• Align the valve with the pipeline to prevent mechanical stress.

• Use gaskets and bolts suitable for flange or threaded connections.

• For tri-clamp or quick-card designs, ensure proper torque and alignment.

• Verify actuator wiring, limit switches, and feedback signals before startup.

3. Safety Considerations

• Avoid exceeding pressure or temperature ratings.

• Do not operate the actuator manually during automated cycles.

• Use PPE when handling hazardous fluids during installation.

Maintenance and Troubleshooting

Routine Maintenance

• Inspect seals, seats, and actuator operation every 3–6 months.

• Lubricate moving parts using compatible, non-toxic lubricants.

• Check for leaks, corrosion, or loose connections.

Cleaning Procedures

• Compatible with CIP/SIP cleaning systems.

• For manual cleaning, disassemble the quick-card or modular sections.

• Avoid abrasive materials or chemicals that can damage seals or stainless steel surfaces.

Common Issues

Conclusion

The Electric Square Three-Way Ball Valve is a highly reliable, efficient, and versatile solution for modern industrial piping systems. Its combination of:

• Three-way flow configuration for diversion and mixing

• Square body design for mechanical stability

• Electric actuation for automated operation

• Durable stainless steel and PTFE construction

…ensures long-term durability, leak-proof performance, and precise fluid control across industries including chemical processing, water treatment, food & beverage, pharmaceuticals, and manufacturing.

By integrating this valve into your industrial pipelines, you gain improved operational efficiency, reduced downtime, and enhanced safety in demanding applications.
